Big Iron Flow Control Products  |  SKU: PVRK2SPDR150STD4H1

Plug Valve Repair Kit, Major, FMC DR50-DR100-DR150 / SPM SP150, 2", STD Service, NOE

$287.00 USD $744.00
Shipping calculated at checkout.
Lead Time: 1 Day

Plug Valve Repair Kit, 2" FMC DR50-DR100-DR150 2" Fig. 1502 / SPM SP150, Std Service, Top Entry Major Kit, 15,000psi, 4140/HNBR, NOE


SPECIFICATIONS
Size: 2 Inch
Pressure: 15,000 PSI
Connections: Fig. 1502 Hammer Union
Service: Standard
Standard AS PER API 6A
Product Specification Level: PSL3
Material Class: AA - General Service
Temperature: P+U (-20F to 250F)
Replaces Kits: SPM 4L11982
FMC 3208508
Compatible Valves: SPM 1A14487
SPM 2A27973
SPM 1A14487HB
SPM 1A14487A
SPM 1A24017
FMC 3247527
FMC 3269545
FMC 3248705

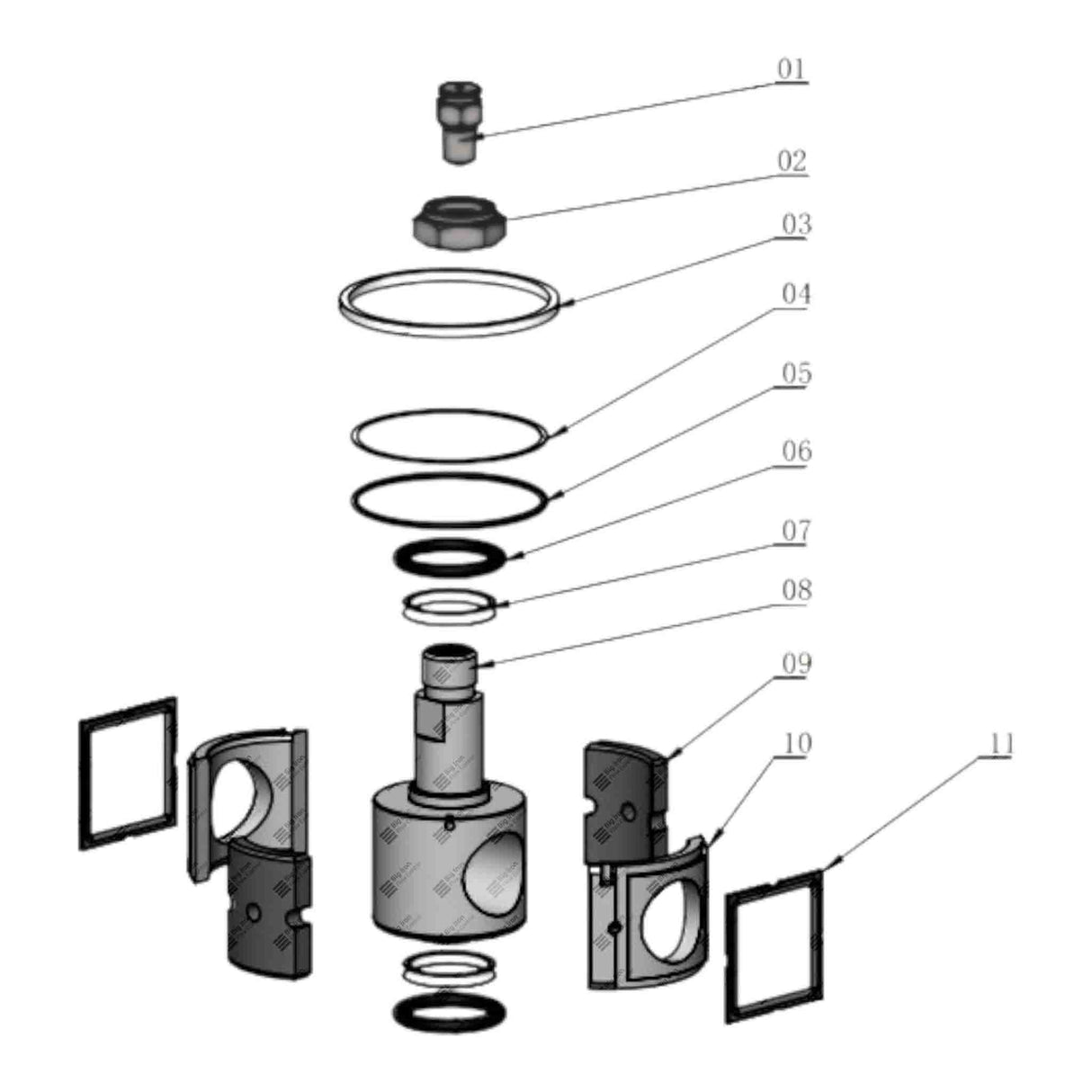

BILL OF MATERIALS
Item QTY Description Material SPM Part No. FMC Part No.
1 1 Grease Fitting (3/8in MNPT) AISI 1045(C45) P10064 3226457
2 1 Hex Lock Nut AISI 1045(C45) / Nylon P11699 3226656
3 1 Felt Gasket Wool Fiber P11698 3235174
4 1 Back-up Ring, Plug Cap PTFE P12257 3255223
5 1 O-Ring, Plug Cap HNBR  P11697 3226706
6 2 O-Ring, Plug Seal HNBR 4A11979 3217008
7 2 O-Ring Backup, Plug Seal PEEK 4A11979 3217010
8 1 Plug AISI 4140  2P14486 3261405
9 2 Side Segments HTPA-NYLON 3P20338 3261457
10 2 Seal Segments AISI 4715  3P11692 3217007
11 2 Segment Seal Rings HNBR 3P11693 3217011

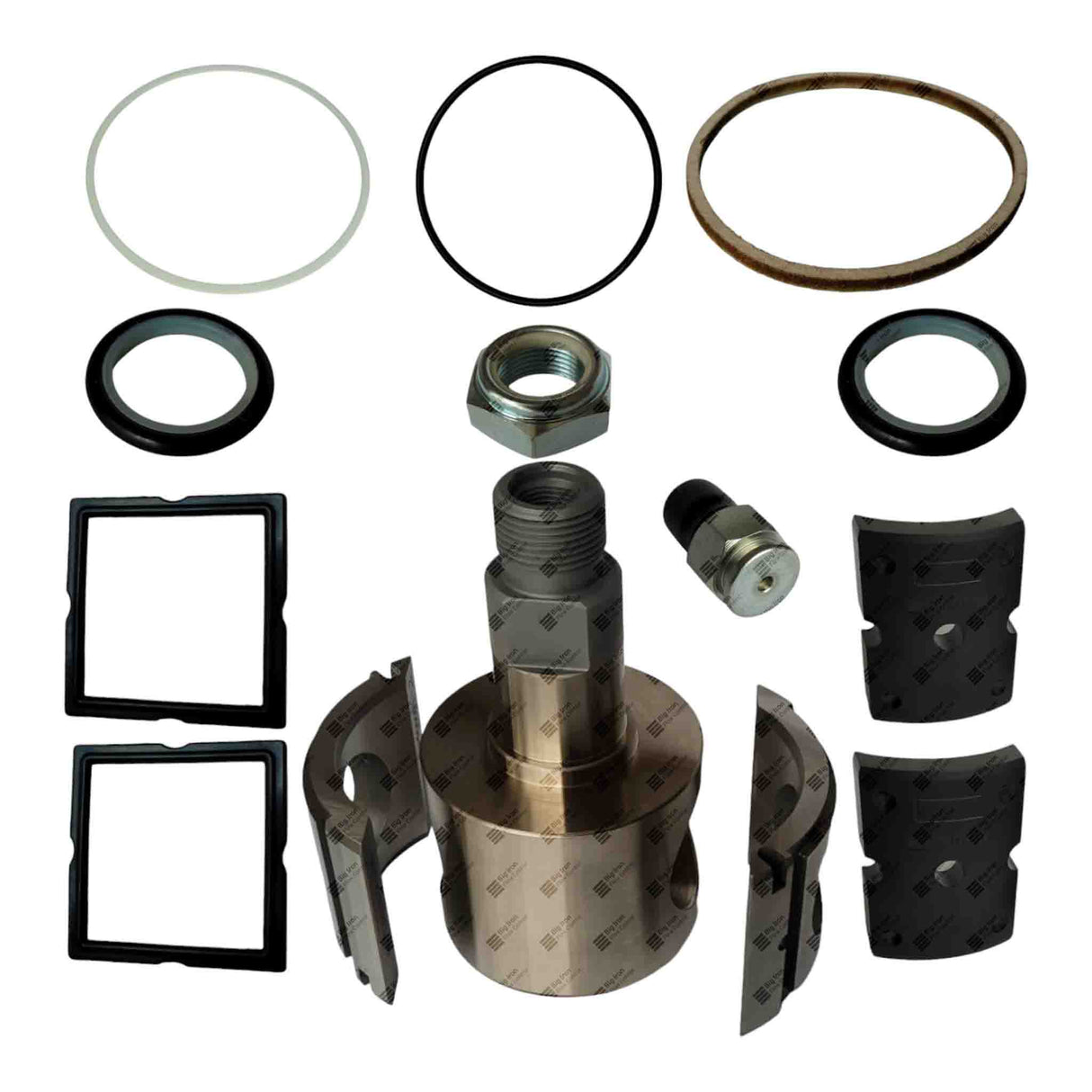

INCLUDES: Plug, Seal Segments, Seals, Side Segments, Grease Fitting, O-Ring, Plug Seals, Backup Ring, Felt gasket, Hex Lock Nut

SPM SP150 Part# 4L11982 (KIT/PARTS/PV/2.00)

FMC DR150 Part# 3208508 (2" Fig 1502 Weco Plug Valve Redress Kit - Replacement Parts)

*NON OEM KIT
